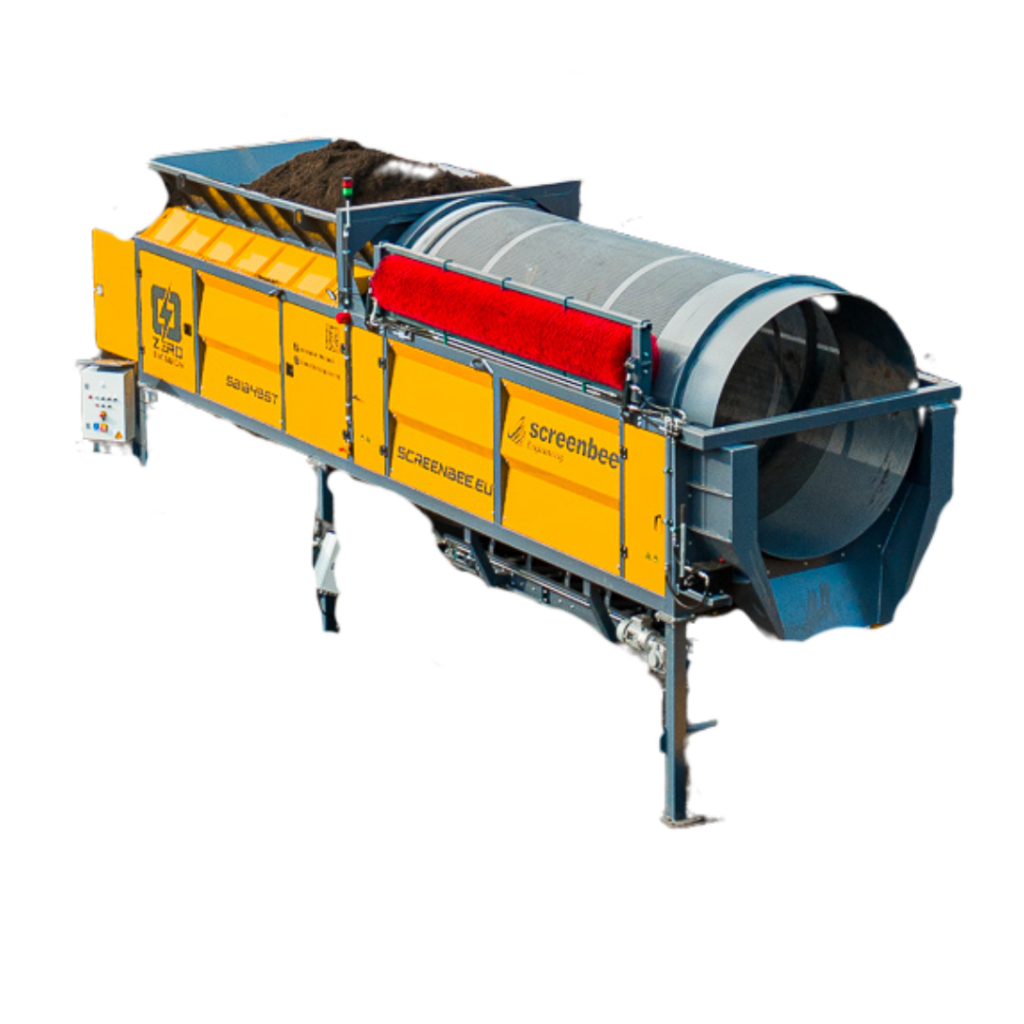

Eine gelb-graue stationäre ScreenBee 20.55 S Trommelsiebanlage mit großem Siebtrommelzylinder, Einfülltrichter voller Material und roter Bürstenleiste.

Siebanlagen

Trommel Screen ScreenBee 20.55 S

2

Trommel Screen
ScreenBee 20.55 S

Powerful – Compact – Flexible – up to 200 m³/h

The stationary trommel screen for maximum efficiency!

The SCREENBEE 20.55 S sets new standards in stationary trommel screens. With its modular design, robust construction, and innovative technology, it is the ideal choice for companies that want to combine maximum screening performance with long-term flexibility.

Innovative Technologies and Advantages

Modular Design:
The SCREENBEE 20.55S can be expanded with additional components at any time without requiring structural changes. This makes the system extremely adaptable and future-proof.
Cost Efficiency:
With an average energy consumption of only 14 kWh and an optional generator that consumes only 2.3 liters of diesel per hour, the machine offers the lowest operating costs in its class.
Highest Performance:
In tests with excavated material, the system achieved a throughput of up to 154 tons per hour, depending on the type and quality of the material.
Screenbee Synchro-System:
This automatic system adjusts the speed of the feeder belt to ensure optimal screening quality.
Environmentally Friendly Operation:
The trommel screen can be operated directly via a 3x400V-32A power connection or an external generator set.
Versatile Expansion Options:
- Hydraulic cleaning of the drum for minimal maintenance.
- Additional conveyor belts for fine fractions.
- Optional: Magnetic drums for separating ferrous and non-ferrous metals.
- Expansion with mobile Screenbee PT conveyor belts.

Special Features for Sustainable and Efficient Use

Hydraulic Drum Cleaning:
Extends the life of the drum and minimizes maintenance.
LED Work Lights:
Ensure optimal visibility even in poor lighting conditions.
Expandable Connection Options:
Additional sockets for operating conveyor belts, magnetic separators, or other equipment.
Optional Weather Covers:
For safe operation in all weather conditions.
High Safety:
With emergency stop switches and an optional radio control system (Tele Radio) for safe operation.

The screening drum can sort up to 99% of all bulk materials and, thanks to electric drive (optionally also diesel or petrol), especially stationary.

The trommel screen has a hydraulically adjustable cleaning brush and all drives are controlled by a frequency converter.

Required power: 14 kW
Capacity: up to 200 m³/h

Screens up to 99% of all bulk materials:

Areas of application for the screening plant:

Mining
Composting
Trench backfilling
Waste processing
Recycling & Industry
Screening of topsoil
Gardening & Landscaping
Wood chip processing
Cable, Sewer & Pipeline Construction
Road, Civil, Earth & Sewerage Construction
Separating and screening of grass sods
Preparation for liquid soil production

Additional Options

Central lubrication system
Conveyor winches
Remote control

Saving costs can sometimes be so simple – maybe it’s just a ScreenBee trommel screen away.
Are you still disposing, or is your waste already a building material?

We look forward to your inquiry and are happy to advise you!
