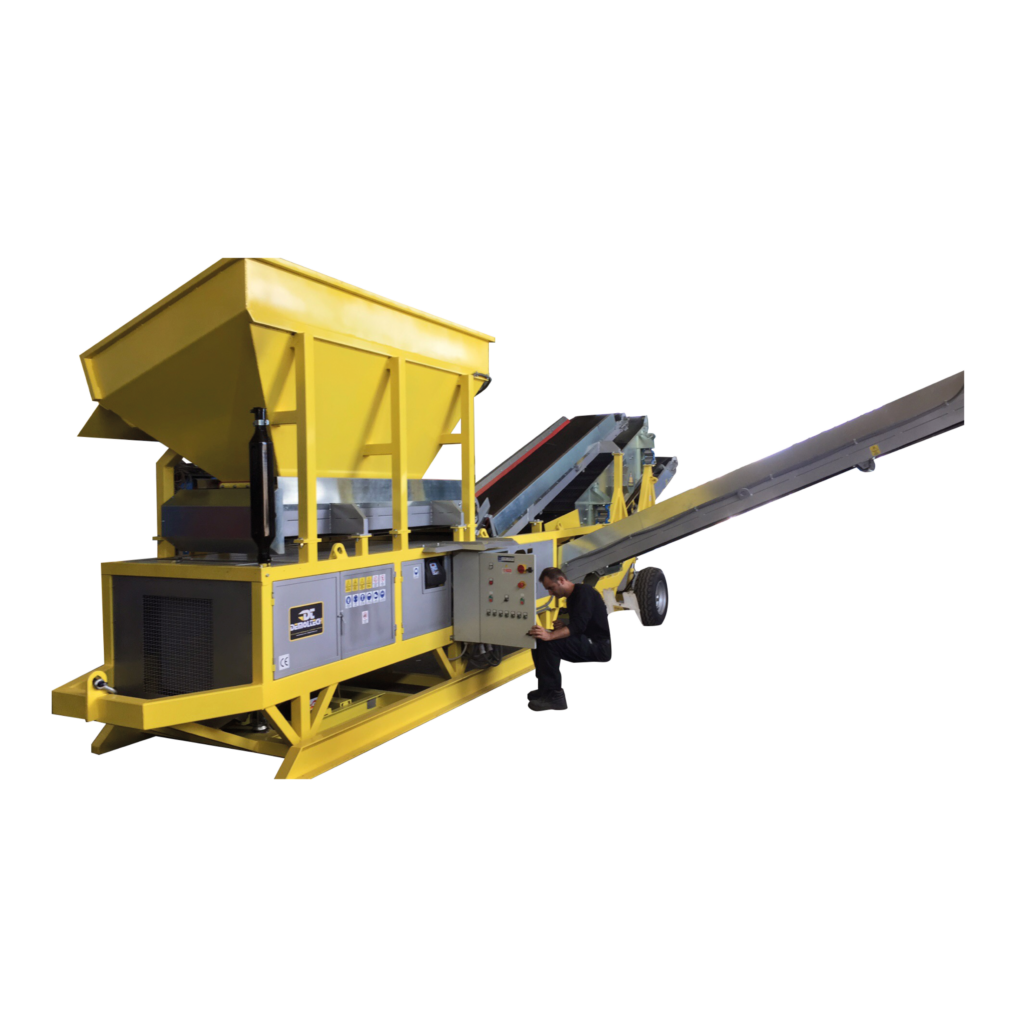

Screening Plant Tigerscreen
with Pre-Screening

Electric or Hydraulic Drive
– up to 100 t/h

With our flat deck screening plant TigerScreen 25.10 – Professional Plus, the dream of recycling becomes reality for you too!
Simply process existing materials directly on the construction site or operating facility, save up to 80% in time and costs, and contribute to protecting our environment at the same time.

The screening plant is ideal for separating a wide variety of materials.
This includes all soil types, construction debris, roof tiles, concrete and much more.

The compact modular design allows quick disassembly of the side conveyor belts, creating perfect conditions for transport to the construction site.
With the hydraulic axle, the screening plant can be moved from working to transport position.

The grizzly pre-screening enables effective separation of coarse materials, increases the effectiveness of the screening plant and additionally protects the screen mesh from coarse materials.

With the diesel generator in combination with the electric motor, it is possible to screen at any location. The adjustable feed of the feed belts and the hopper allows optimal adjustment of the plant to the appropriate material. This makes it possible to achieve high screening performance with a wide variety of materials.

» Screen change in less than 20 minutes – this enables maximum flexibility during screening

» Uniform feeding and distribution across the flat deck thanks to additional feed belt

» Hydraulic cylinders bring the axle & tires into transport position

» Change between different grain sizes possible

» Increased effectiveness through grizzly pre-screening



Materials:

Asphalt | Compost | Topsoil | Clay | Stone | Corn
Humus | Wood Chips | Aluminum | Gravel | Sand | Waste
Gravel | Coal | Cartridges | Ammunition | Construction Debris | Scrap | Slag



General:

• Speed regulation for feed belt under the feed hopper
• Axle with hydraulic hand pump for moving the machine
• 1 feed hopper (2.5m³) with pre-screening with 2,800 x 1,200 mm
• 3 fractions (0 – 30 mm, 30 – 70 mm, 70 mm or as desired)
• 2 screen decks with 2,500 x 1,000 mm screening surface with 22° inclination
• vibrating grizzly pre-screening 120mm (or as desired)
• IVECO diesel engine & generator with 30 kW
• 3 discharge conveyor belts
• 1 feed belt



Applications of the Screening Plant:

• Mining
• Recycling & Industry
• Road, Civil, Earthworks & Sewer Construction



Your benefits:

• Including feed conveyor belt
• Including grid for coarse screening
• High screening performance with a wide variety of materials
• Maximum flexibility thanks to quick change
• Both stationary and mobile operation possible
• Optimal adjustment of the plant to the appropriate material

Additional Options

• Axle



Saving costs can sometimes be so simple – maybe it’s just a TigerScreen screening plant away.
Are you still disposing or is your waste already a building material?

We look forward to your inquiry and are happy to advise you!
