Trommel screen

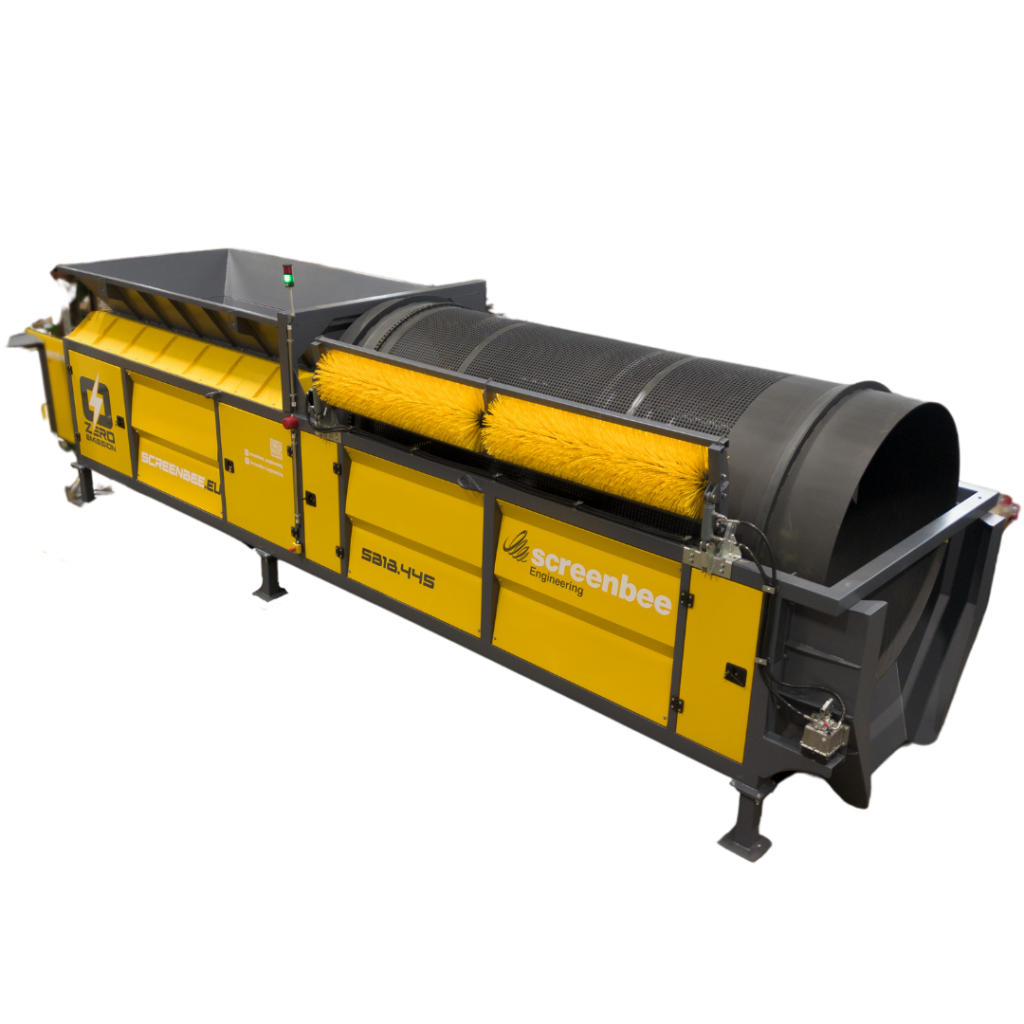

ScreenBee 18.44 S
Powerful – Compact – Flexible – up to 200 m³/h
The stationary trommel screen for maximum efficiency!
The SCREENBEE 18.44S sets new standards in the field of stationary trommel screens. With its modular design, robust construction, and innovative technology, it is the ideal choice for companies looking to combine maximum screening performance with long-term flexibility.
Innovative technologies and benefits
- Modular design:
The SCREENBEE 18.44S can be expanded at any time with additional components without requiring structural modifications. This makes the unit extremely adaptable and future-proof. - Cost efficiency:
With an average energy consumption of only 14 kWh and an optional generator that consumes just 2.3 liters of diesel per hour, the machine offers the lowest operating costs in its class. - Maximum performance:
In tests with excavated material, the unit achieved a throughput of up to 154 tonnes per hour, depending on the type and quality of the material. - Screenbee Synchro system:
This automatic system adjusts the feed belt speed to ensure optimum screening quality. - Environmentally friendly operation:
The trommel screen can be operated directly via a 3x400V-32A power connection or an external generator set. - Versatile expansion options:
- Hydraulic cleaning of the drum for minimal maintenance.
- Additional conveyor belts for fine fractions.
- Optional: magnetic drums for separating ferrous and non-ferrous metals.
- Expansion with mobile Screenbee PT conveyor belts.
- Central lubrication system for reliable maintenance and extended service life.
The screening drum can sort up to 99% of all bulk materials and, thanks to the electric drive (optionally also diesel or petrol), is particularly suitable for stationary use.
Depending on requirements, the screening drum is available either as a perforated plate drum with permanently installed screens or as a drum with tensioned screens, where the screen decks can be changed quickly.
The trommel screen has a hydraulically adjustable cleaning brush, and all drives are controlled by a frequency inverter.
Mobile trommel screen on hooklift – electrically driven incl. 15 kW diesel generator.
Required power: 14 kW
Capacity: up to 200 m³/h
Screens up to 99% of all bulk materials:
Asphalt | Compost | Topsoil | Clay | Stone | Corn
Humus | Wood chips | Aluminium | Gravel | Sand | Waste
Pebbles | Coal | Cartridges | Ammunition | Construction waste | Scrap | Slag
Applications for the screening plant:
- Mining
- Composting
- Trench backfilling
- Waste processing
- Recycling & industry
- Screening topsoil
- Gardening & landscaping
- Wood chip processing
- Cable, sewer & pipeline construction
- Road, civil, earthworks & sewer construction
- Separating and screening turf
- Preparation for liquid soil production
Additional options
- Central lubrication system
- Conveyor cable winches
- Remote control
Saving money can sometimes be that simple – maybe you’re just one ScreenBee trommel screen away.
Are you still disposing of waste, or is your waste already becoming a construction material?
We look forward to your inquiry and are happy to advise you!
