Trommel screen
Screenbee SB13.26e-Track

Compact and powerful – the mobile trommel screen on a crawler undercarriage

Compact – Mobile – Powerful

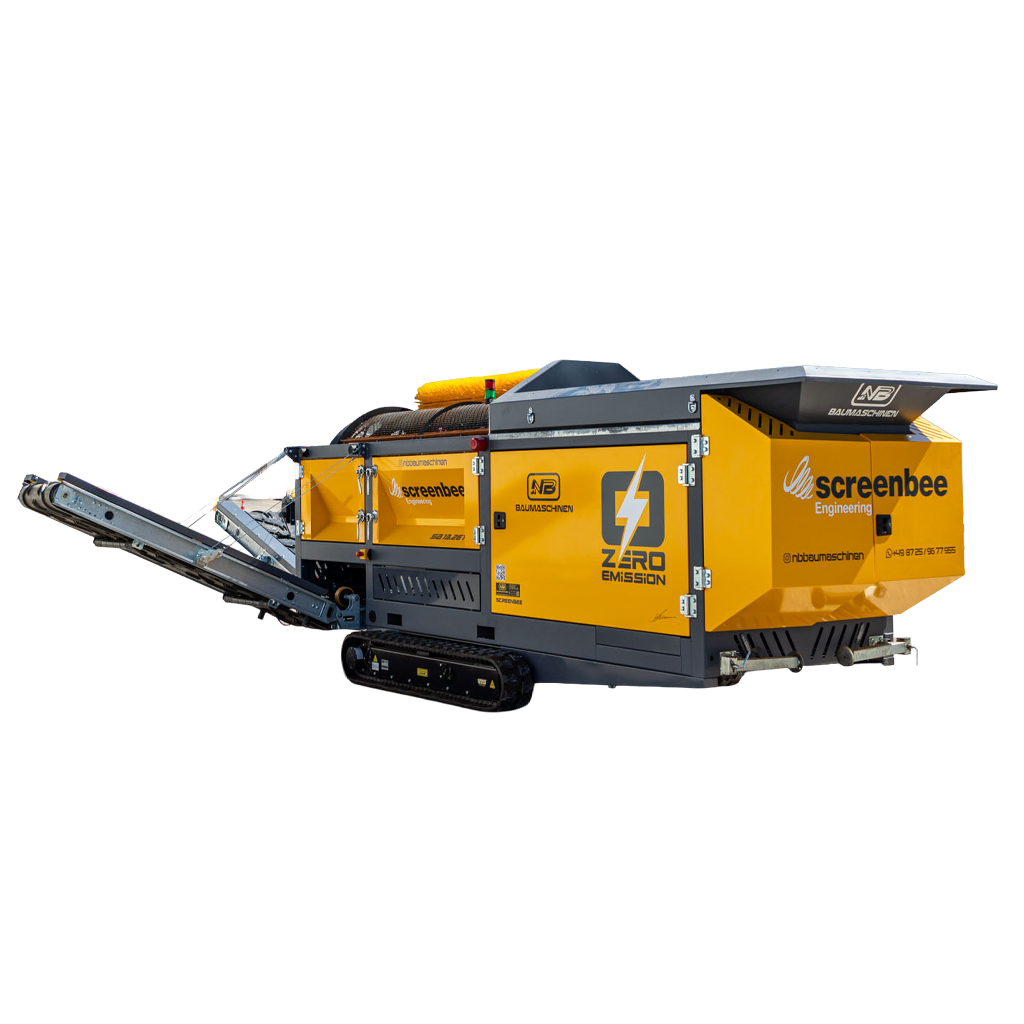

The SCREENBEE SB13.26e-Track is the ideal trommel screen for anyone looking for a compact, mobile, and powerful solution for screening various bulk materials. Thanks to its crawler undercarriage, the machine can be used flexibly on construction sites, recycling yards, or in gardening and landscaping.

With a screening capacity of up to 60 t/h, the Screenbee reliably separates different materials and impresses with low operating costs, compact dimensions, and easy handling.

The screening drum is suitable for a wide variety of materials and can process up to 99% of all bulk materials. Thanks to the chain-driven drum and the hydraulically adjustable cleaning brush, the system remains reliable and flexible for daily use.

Thanks to the hook lift system , the Screenbee SB13.26e-Track is easy to transport and quickly ready for use at changing locations.

Advantages of the SCREENBEE SB13.26e-Track

1. Compact design:
   With a total weight of only 3,700 kg and compact transport dimensions, the machine is particularly handy and flexible to use.
2. Mobile application possibilities:
   The crawler undercarriage ensures that the trommel screen can be moved safely even on uneven terrain.
3. High screening performance:
   The system screens up to 60 tons per hour depending on the material, making it ideal for small to medium-sized processing tasks.
4. Low operating costs:
   Due to the sophisticated design, the chain-driven drum, and the compact technology, operation remains economical and simple.
5. Easy transport:
   Thanks to the hook lift system, the unit is easy to transport and can be deployed quickly on different construction sites.



Technical data of the SCREENBEE SB13.26e-Track

• Total weight: 3,700 kg
• Total length: 5,700 mm
• Transport dimensions: 5,600 mm length x 2,155 mm width x 2,850 mm height
• Drum length: 2,600 mm
• Drum diameter: 1,250 mm
• Feed hopper length: 2,390 mm
• Throughput capacity: up to 60 t/h



Features & Special Characteristics

• Crawler undercarriage: For flexible use on various surfaces.
• Hydraulically adjustable cleaning brush: Supports clean and reliable screening performance.
• Chain-driven drum: Robust technology for daily use.
• Intelligent charging: For simple and well-thought-out operation in everyday work.
• LED spotlights: For better visibility at the job site.
• Diesel or gasoline generator: Flexible power supply depending on the area of application.
• Hook lift system: Easy to transport and mobile in use.



Optional equipment

• Central lubrication system
• Conveyor winches
• Remote control
• Power generator



Screens up to 99% of all bulk materials:

Asphalt | Compost | Topsoil | Clay | Stone | Corn
Humus | Wood chips | Aluminum | Crushed stone | Sand | Waste
Gravel | Coal | Construction debris | Scrap | Slag

Areas of application for the screening plant:

• Recycling & Industry
• Composting
• Screening of topsoil
• Gardening & Landscaping
• Wood chip processing
• Waste processing
• Trench backfilling
• Cable, sewer & pipeline construction
• Road, civil, earthworks & sewer construction
• Preparation for liquid soil production

Your benefits:

• Up to 60 t/h screening capacity
• Compact dimensions
• Low operating costs
• Mobile thanks to crawler undercarriage
• Easy to transport thanks to hook lift system
• Chain-driven drum
• Hydraulically adjustable cleaning brush
• LED spotlights
• Diesel or gasoline generator possible
• Optional with remote control, conveyor winches, and central lubrication system



Saving costs can sometimes be so simple – maybe you’re just one Screenbee trommel screen away from it.

Are you still disposing of it, or is your material already becoming a building material again?

We look forward to your inquiry and are happy to advise you!
