MBI SH410R Scrap Shear

3

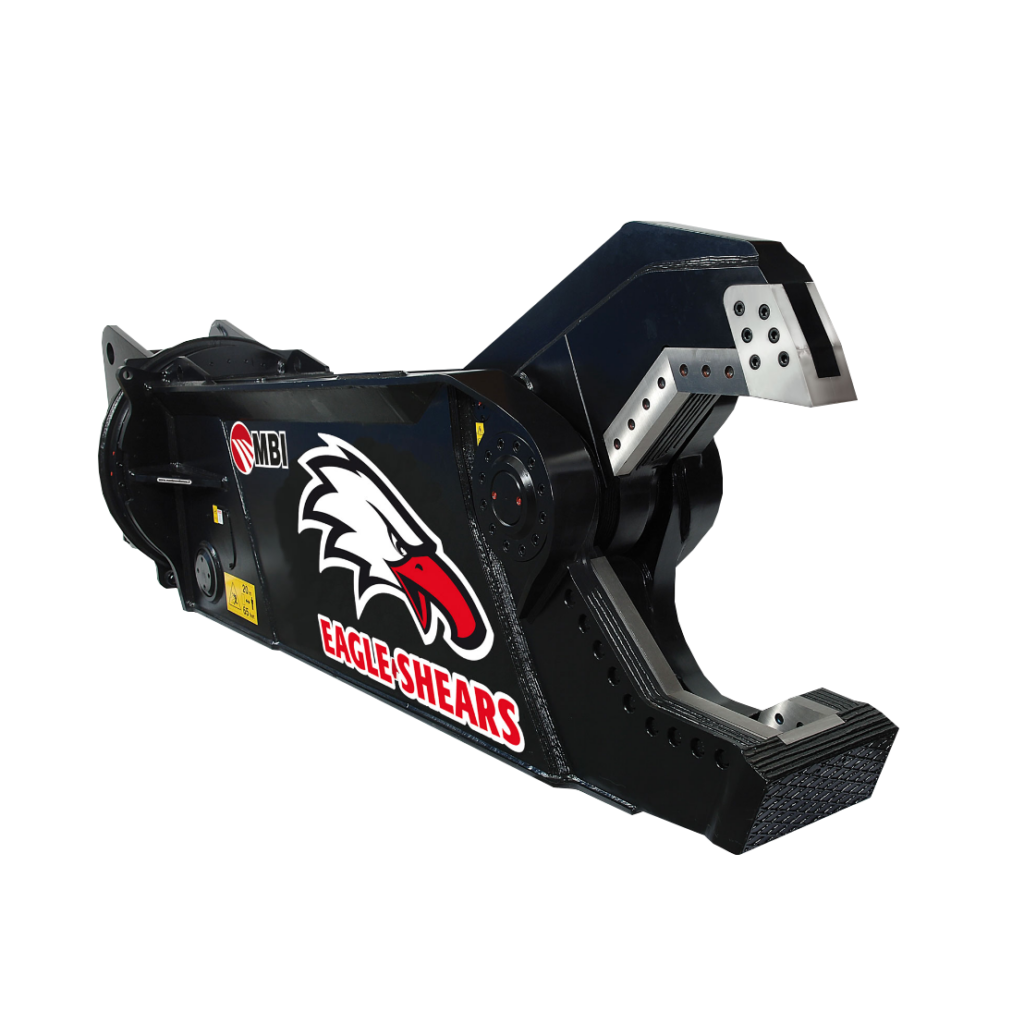

Mantovanibenne SH410R

» for excavators from 39 tons

The scrap shear has been designed for the demolition of all types of metal structures and the subsequent scrapping of the resulting material. It was specifically designed for cutting and preparing ferrous material for subsequent recycling.

It features a stabilizing guide for the movable jaw for targeted and precise cutting. The cutting edges of the demolition shear are easily and quickly replaceable, significantly reducing maintenance time.

The shear blades are trapezoidal, which increases load resistance, and can be used on three sides before replacement.

Double cutting guide
» Thanks to the adjustable double guide for the movable shaft, perfect jaw alignment can be maintained, and the shear operates at maximum capacity.

Jaw design
» The special opening tilts the material to be cut so that the movable shaft can exert maximum force on a minimal surface area.

Forged cylinder
» The cylinder with a forged shaft is installed upside down, protecting the shaft inside the shear body and ensuring maximum strength.

Autolube system
» Automatic lubrication ensures that the large shears are constantly lubricated, reducing maintenance effort.

Speed valve
» Increases performance and protects the hydraulic system from pressure peaks.
